Project Overview & System Type
This project involved a detailed performance-based CFD comparative analysis for a BS 9999 firefighting shaft mechanical smoke control and protected lobby extract system serving a large mixed-use commercial development containing open-plan tenant offices and retail zones. The study focused on validating the proposed mechanical design by benchmarking its performance directly against a prescriptive BRE-style naturally ventilated smoke shaft configuration.
The Engineering Challenge & Regulatory Framework
For this BS 9999 firefighting shaft strategy, the relevant comparison was against a prescriptive naturally ventilated smoke shaft arrangement often referred to in practice as a BRE natural shaft. However, a natural shaft relies entirely on thermal buoyancy, making its performance highly dependent on the location of the fire. A top-floor fire represents the worst-case scenario for a natural shaft because the reduced height limits the available buoyancy head; conversely, a lower-floor fire increases the natural buoyancy head but presents the worst-case scenario for a mechanical system due to the highly resistive, multi-storey make-up air path via the stairhead ventilator. The engineering challenge was to execute a comparative CFD study across these opposing physical extremes to prove that the proposed mechanical system delivers equivalent or superior life safety performance under all operating conditions.
CFD Modelling & Analysis Methodology

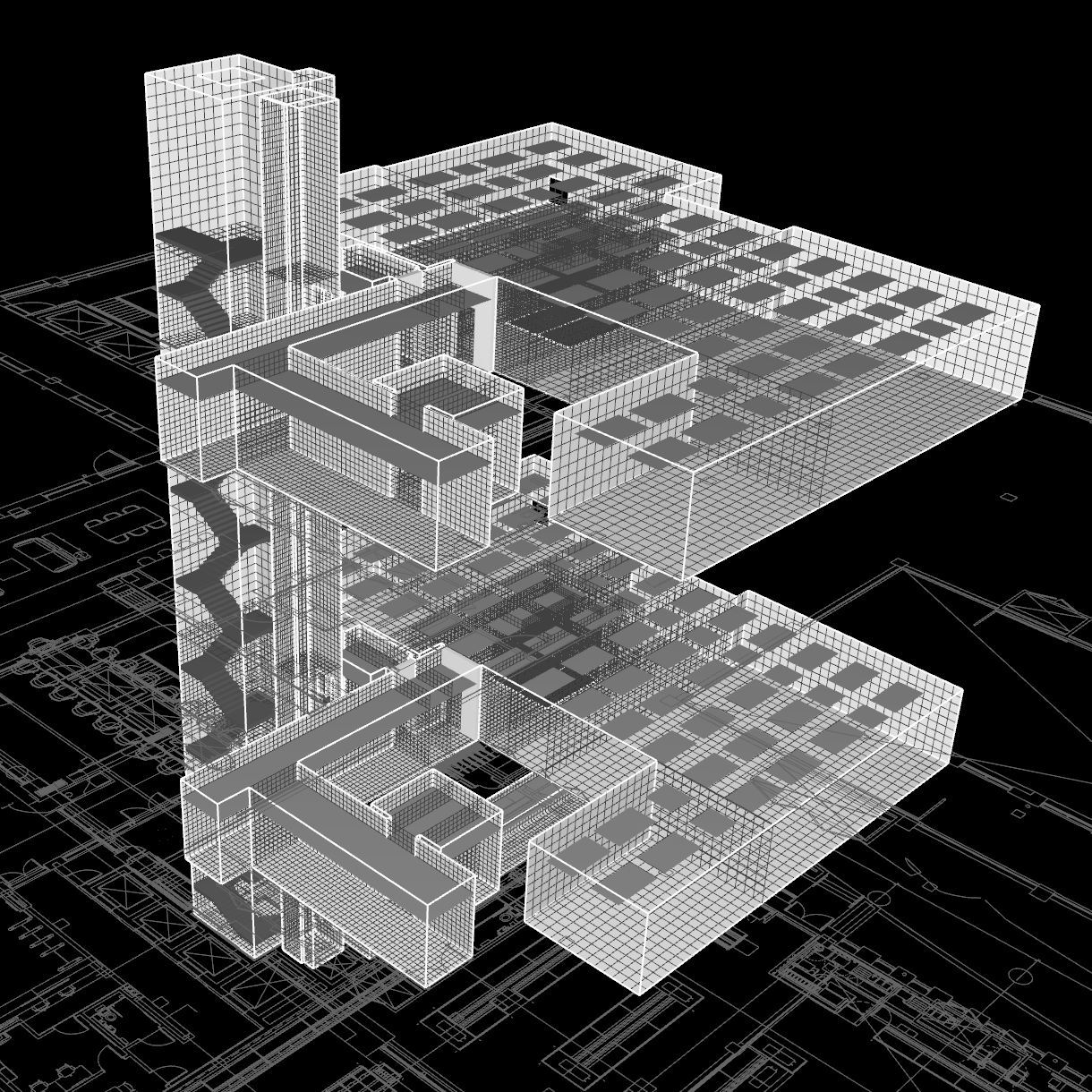

High-fidelity transient CFD simulations were conducted using Fire Dynamics Simulator (FDS). Characteristic fire diameters were calculated to optimize the local mesh cell sizes, and complex boundary conditions were applied to represent realistic building leakage paths. To provide a high-value assessment for emergency services, tenability was evaluated using a rigorous multi-tiered firefighting framework mapped radially from the fire compartment door: Routine (<100°C), Hazardous (100–120°C), Extreme (120–160°C), and Critical (>160°C). Smoke propagation, temperature fields, and visibility levels were tracked continuously throughout the simulation domain.
Simulation Scenarios & Operational Timelines
The comparative assessment evaluated two distinct fire scenarios:
- Scenario 1 (Level 6 Open-Plan Office): A top-floor fire representing the least favorable condition for a natural shaft due to minimized buoyancy head.
- Scenario 2 (Level 2 Open-Plan Office): A lower-floor fire representing the most resistive make-up air path for the mechanical system.
Results & Performance Outcomes
The CFD simulations demonstrated that the proposed mechanical smoke control system significantly outperformed the prescriptive natural shaft benchmark across all critical metrics. In the top-floor fire (Scenario 1), the mechanical system rapidly cleared the lobby, completely overcoming the buoyancy deficit that hindered the natural shaft. In the lower-floor fire (Scenario 2), despite the increased resistance of the elongated make-up air path, the mechanical system maintained robust, stable extract rates. Stair cores remained entirely smoke-free, and temperatures within the firefighting lobbies and along the firefighting access routes were successfully contained within the "Routine" (<100°C) threshold.
Value Delivered & Compliance Impact
By delivering definitive, comparative data across worst-case physical extremes, the completed CFD analysis established a strong technical basis for the mechanical system. The study was prepared to support Qualitative Design Review (QDR) discussions and the wider approval pathway with the Authority Having Jurisdiction (AHJ). This performance-based approach showed how the client could substitute bulky, space-consuming natural shafts with a compact, highly efficient mechanical system, reclaiming premium floor area for tenant use while significantly upgrading the building’s overall fire safety profile.
